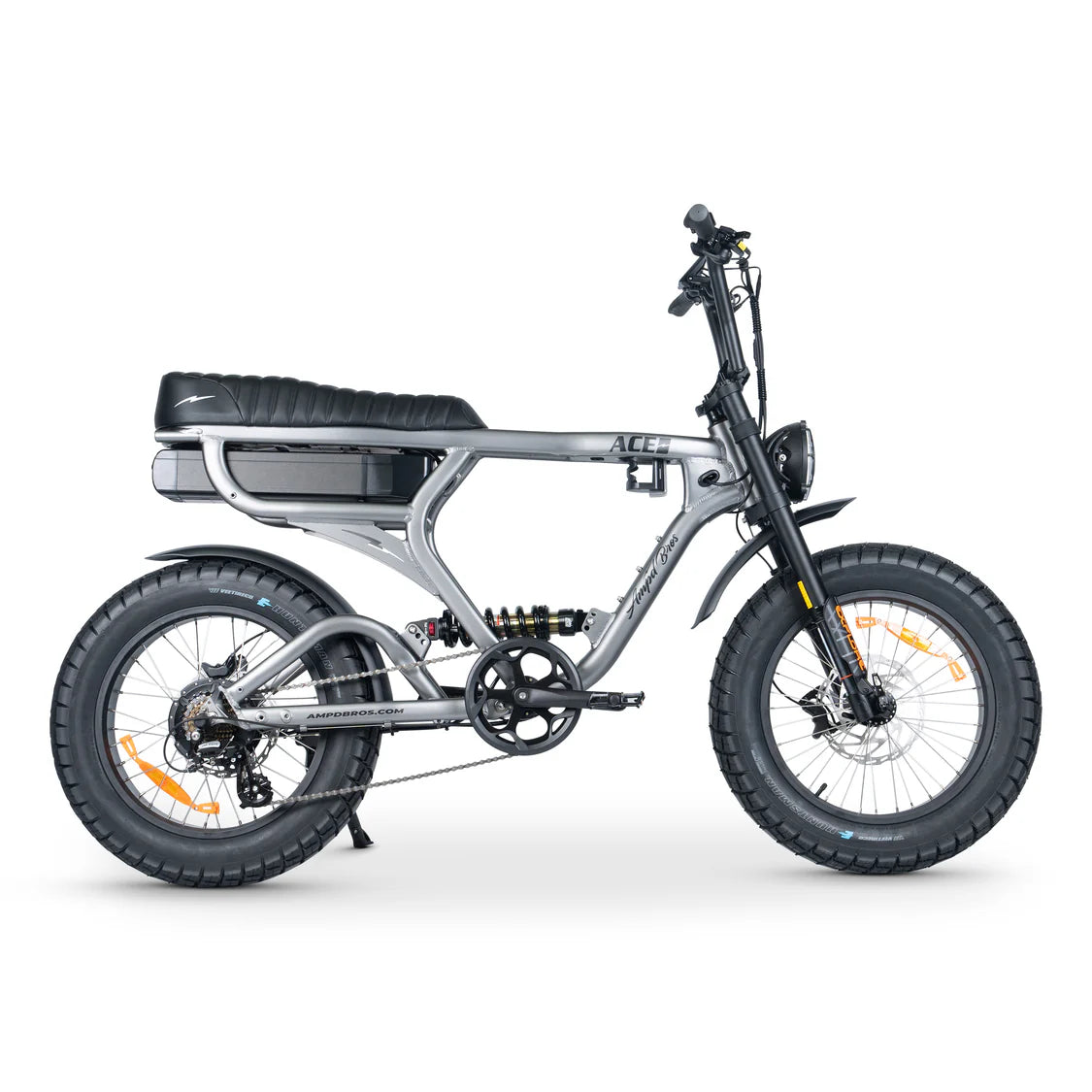

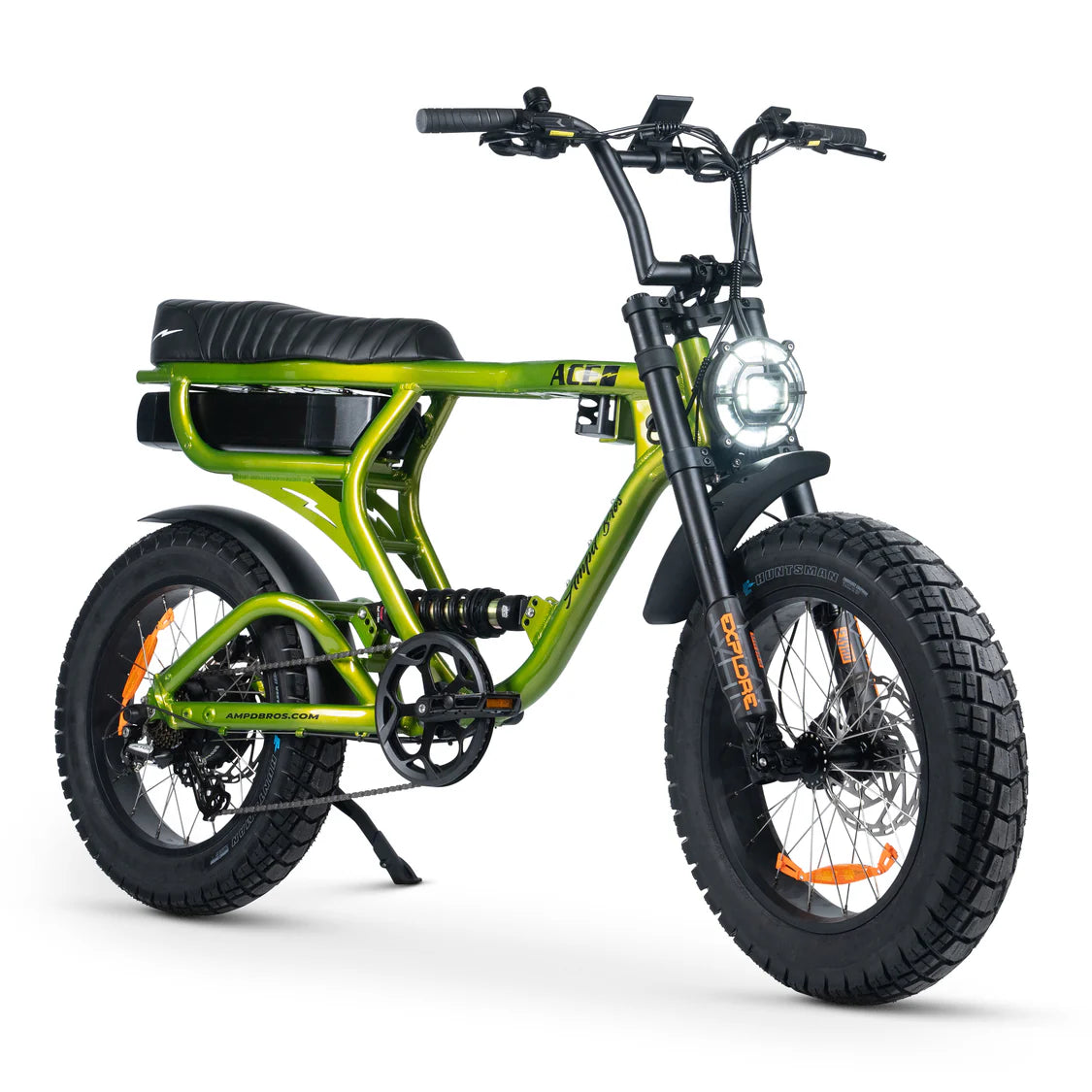

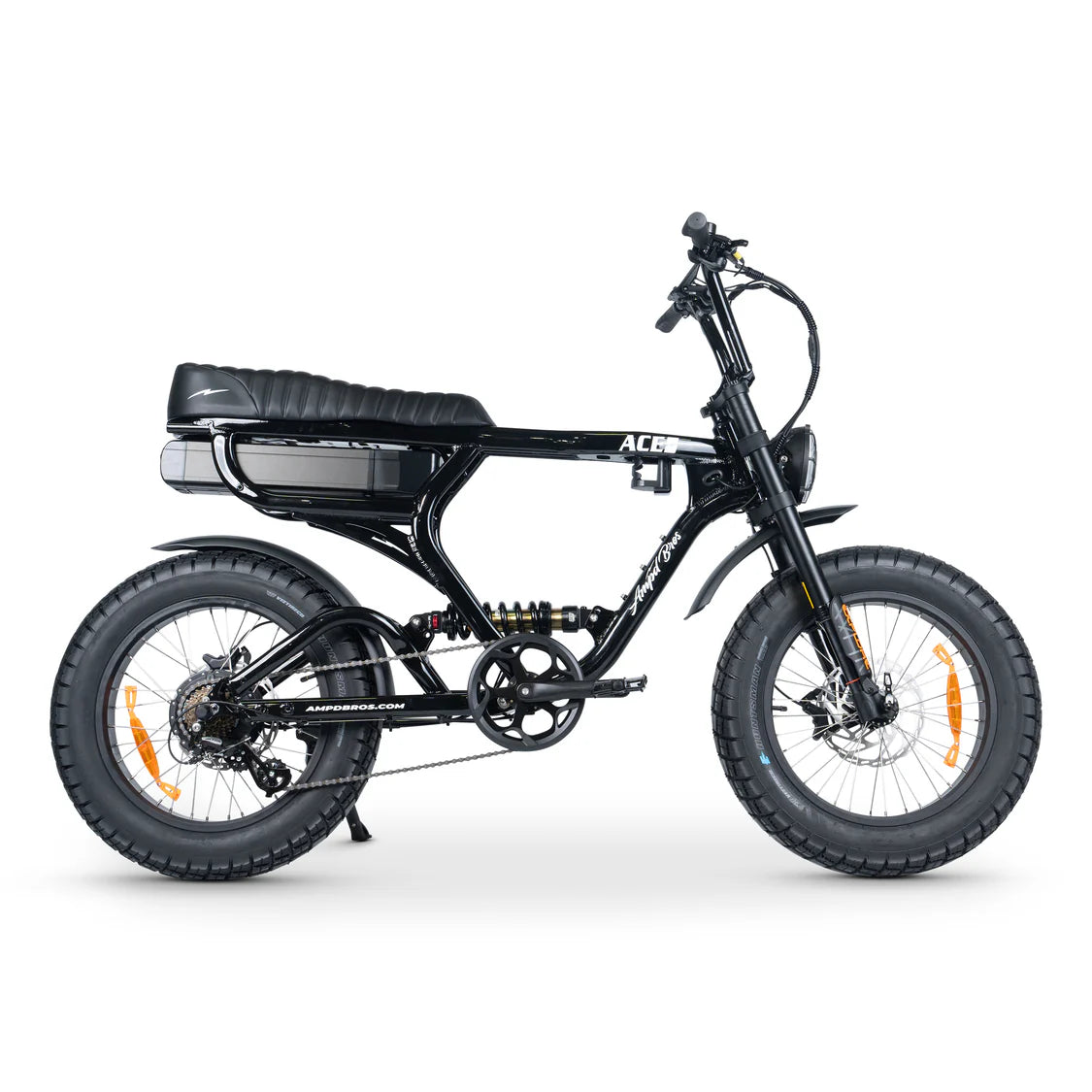

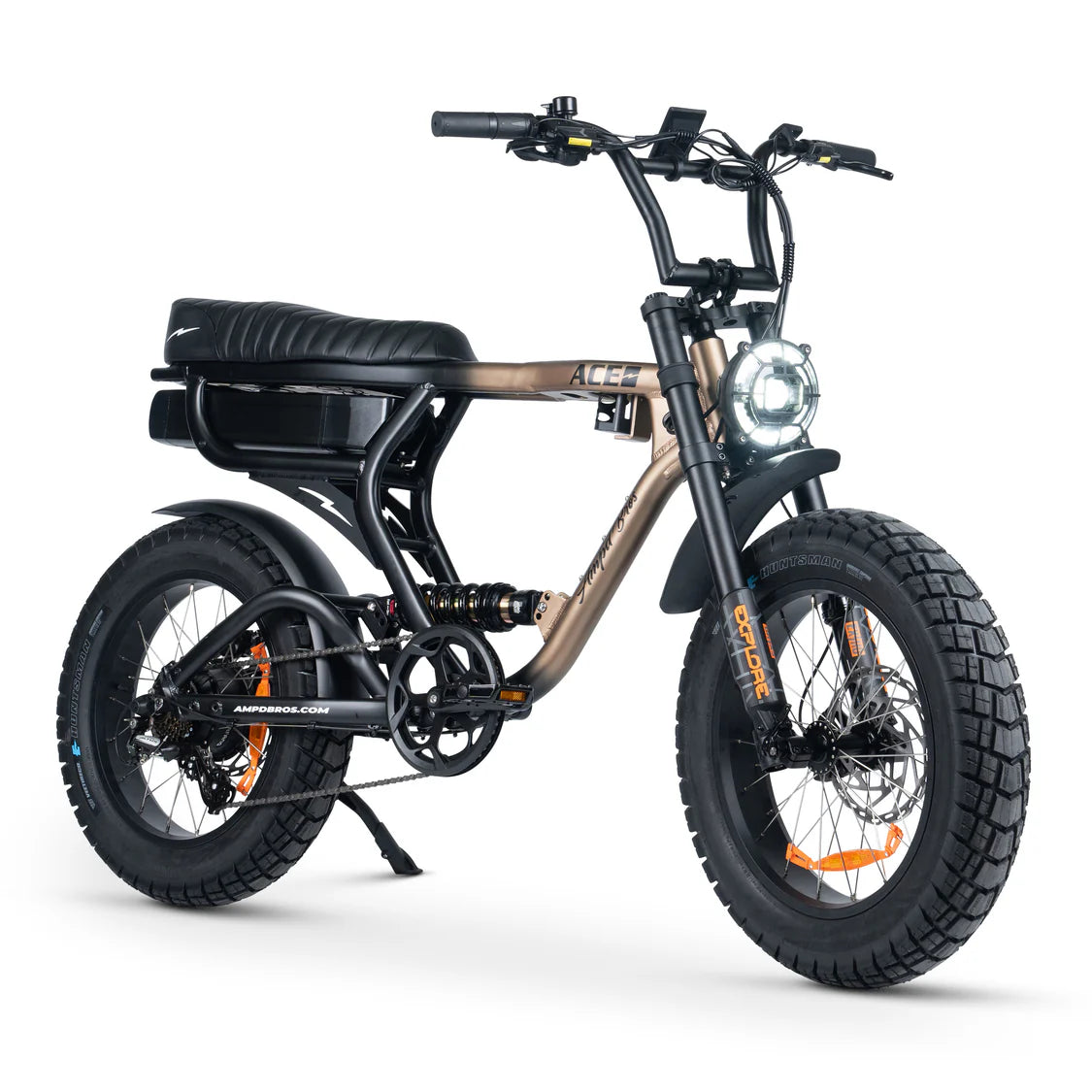

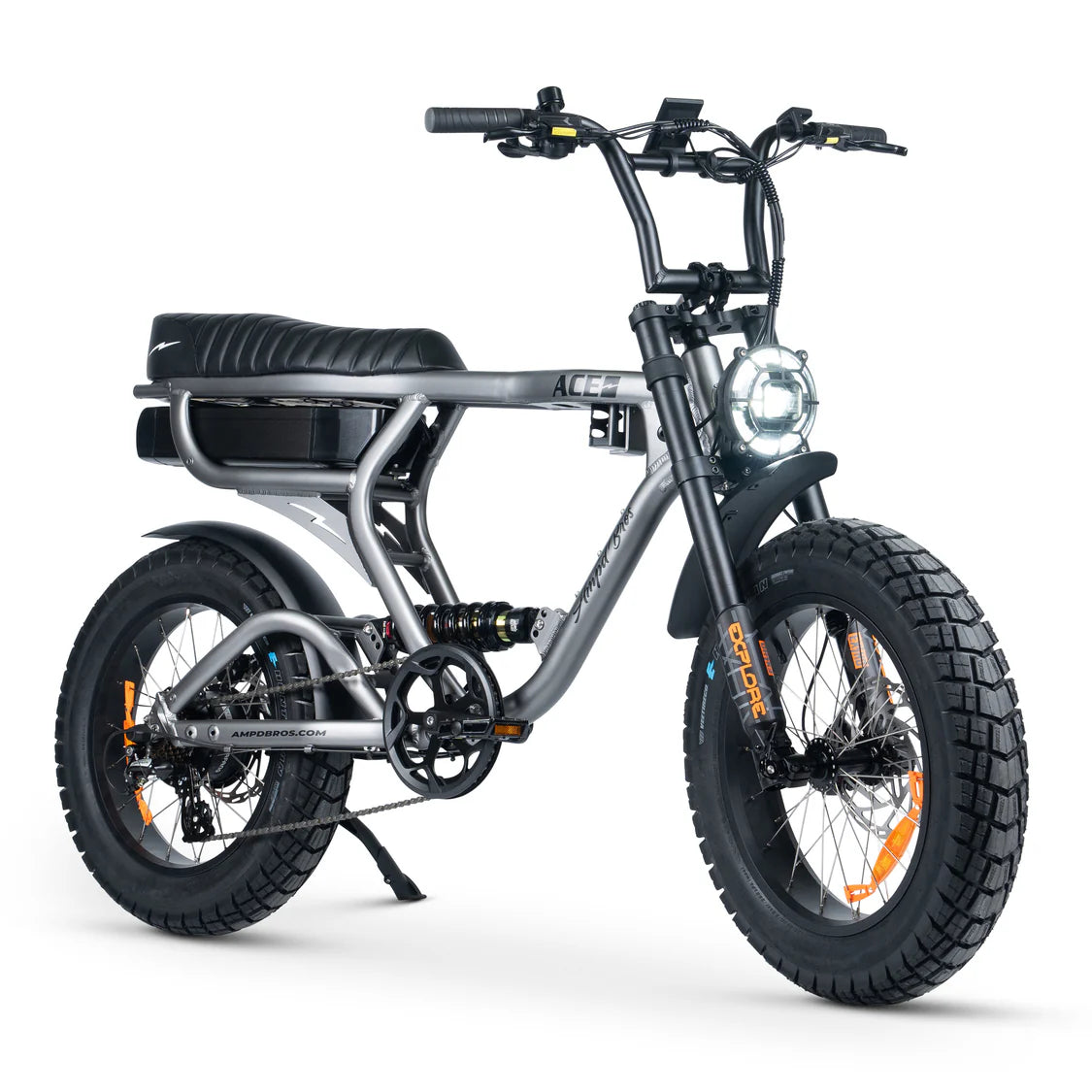

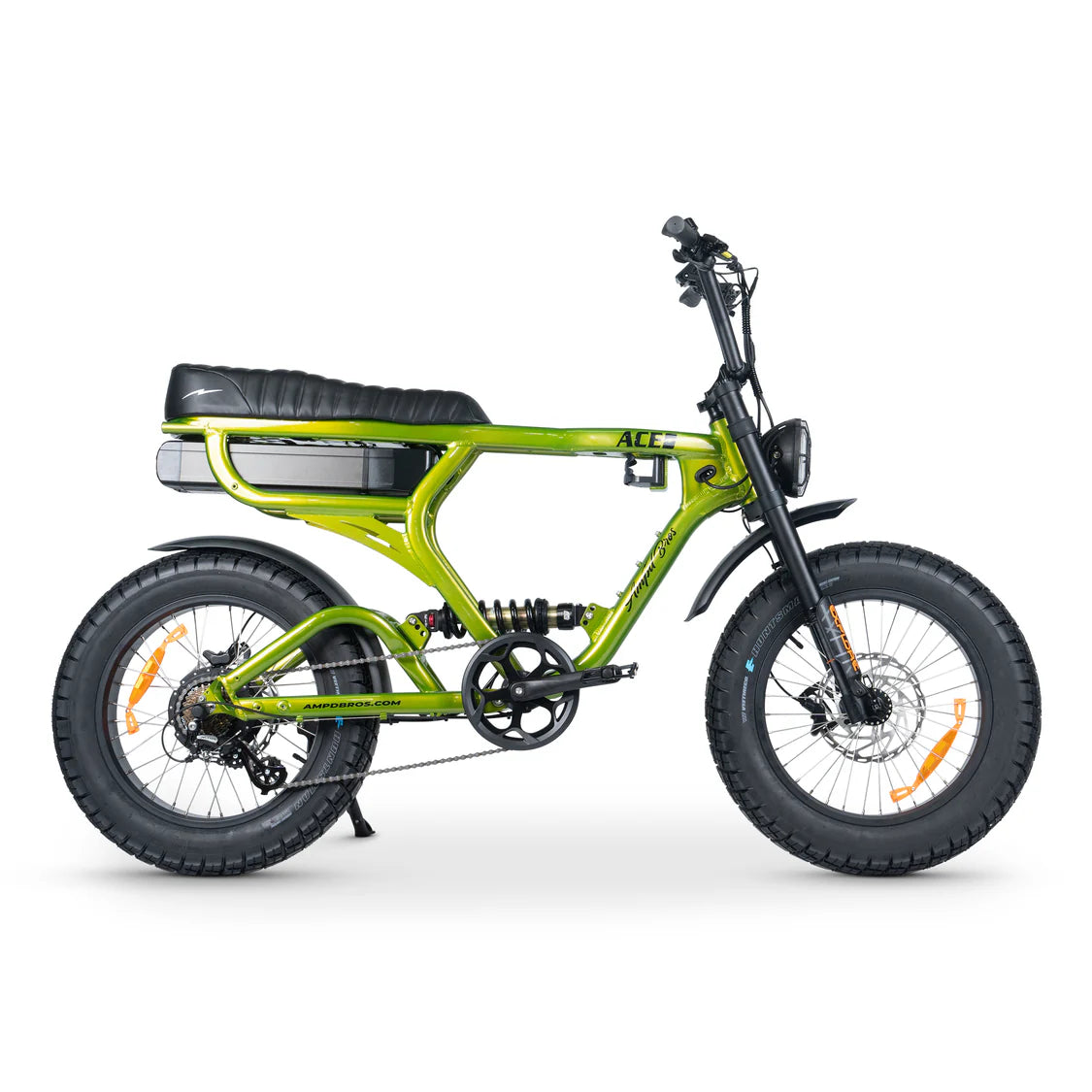

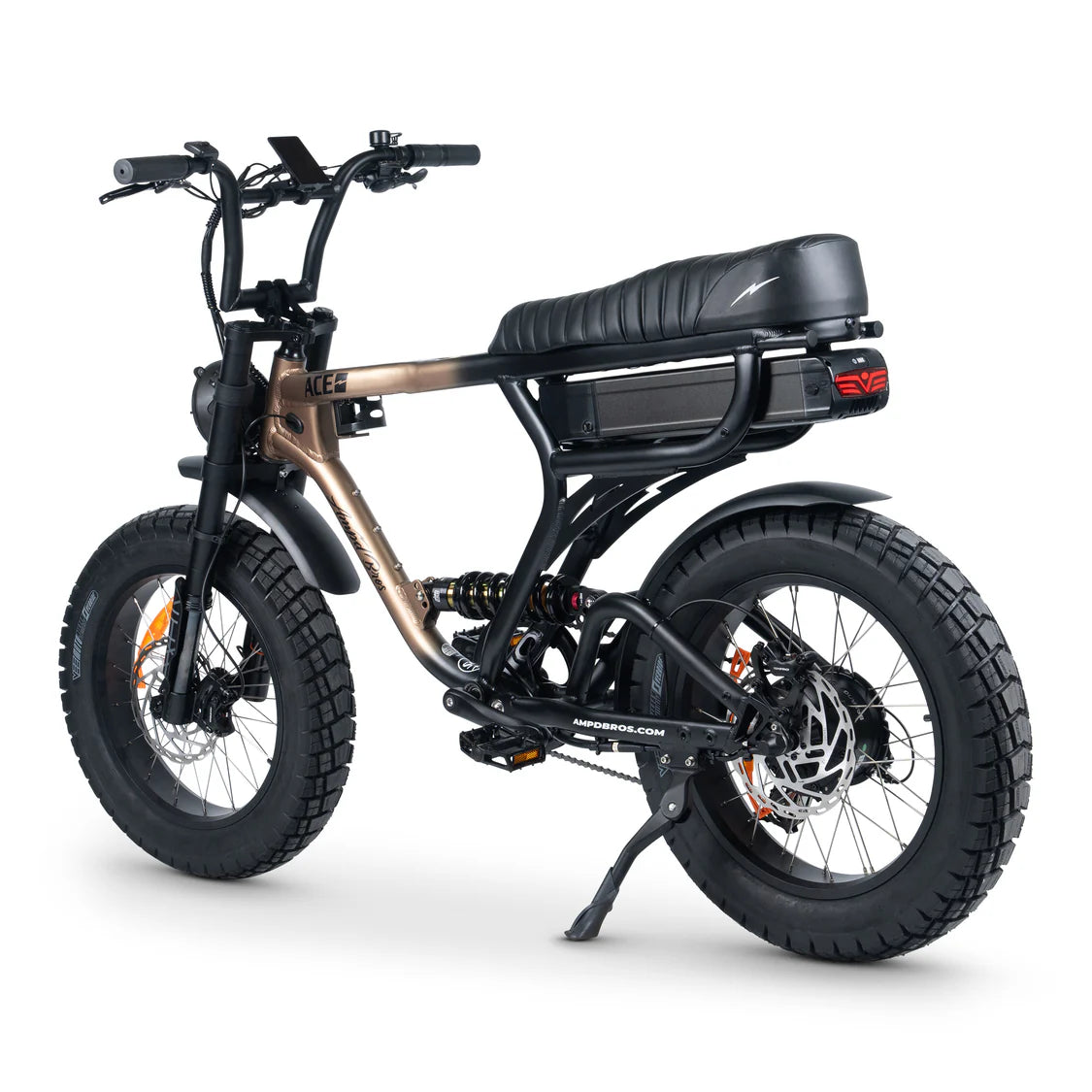

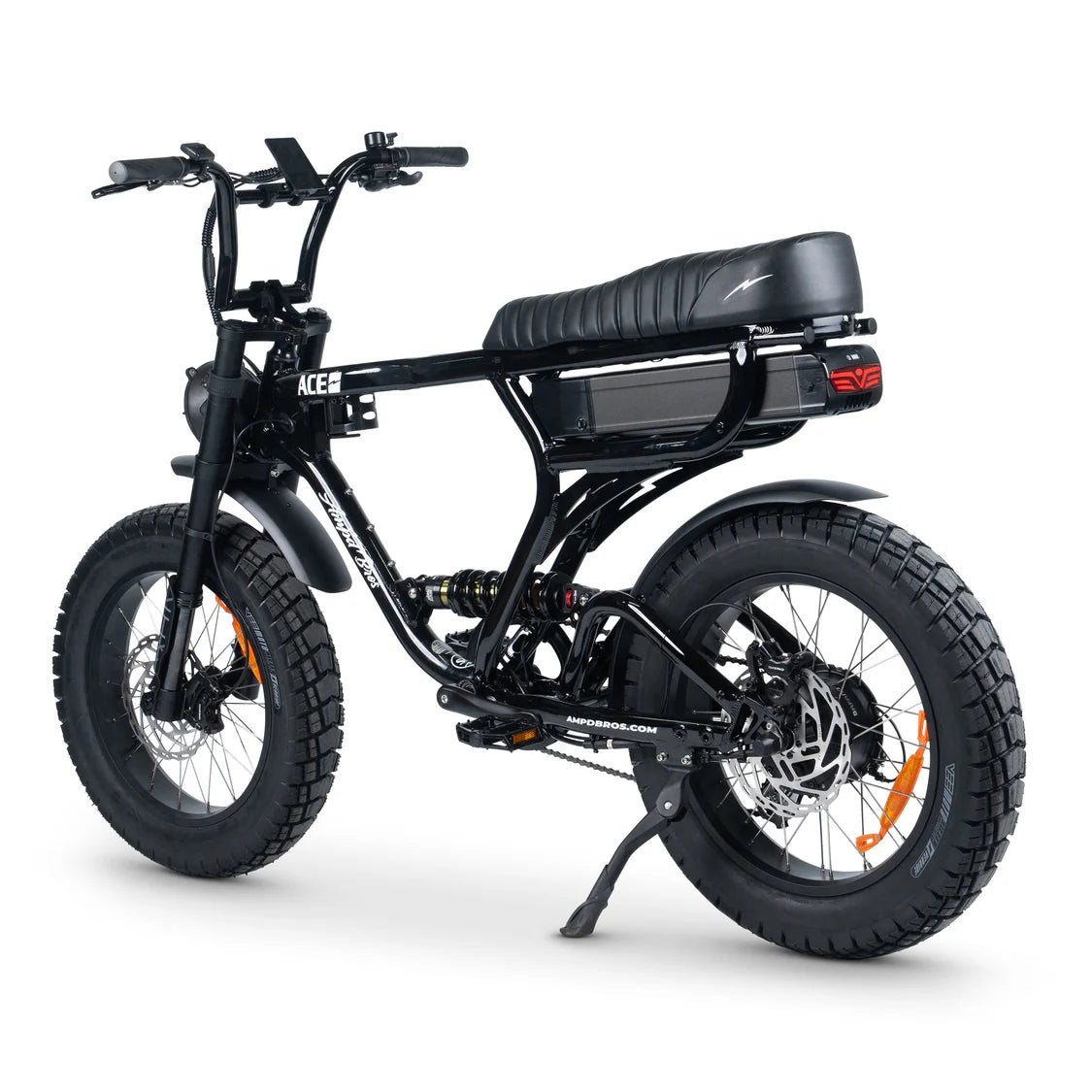

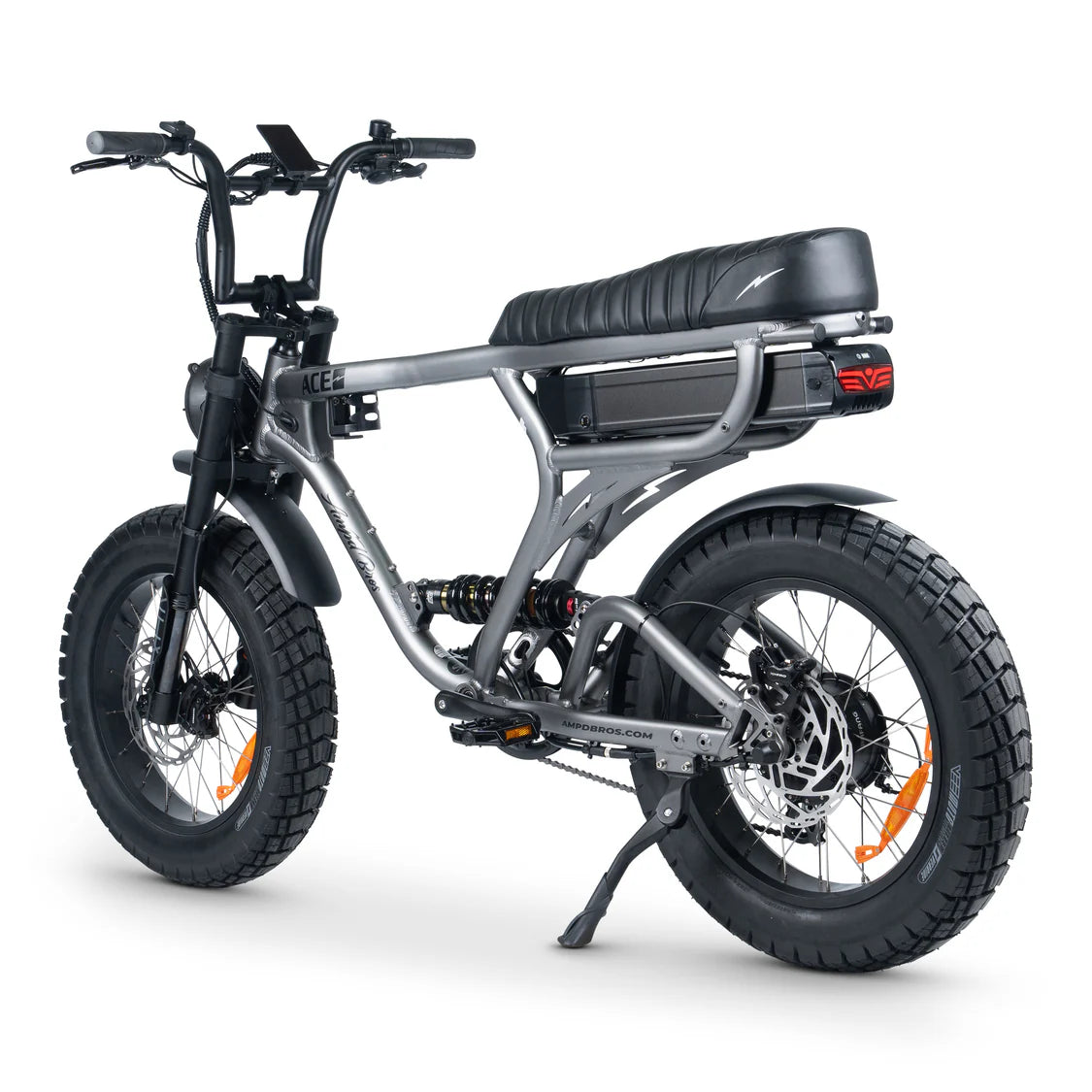

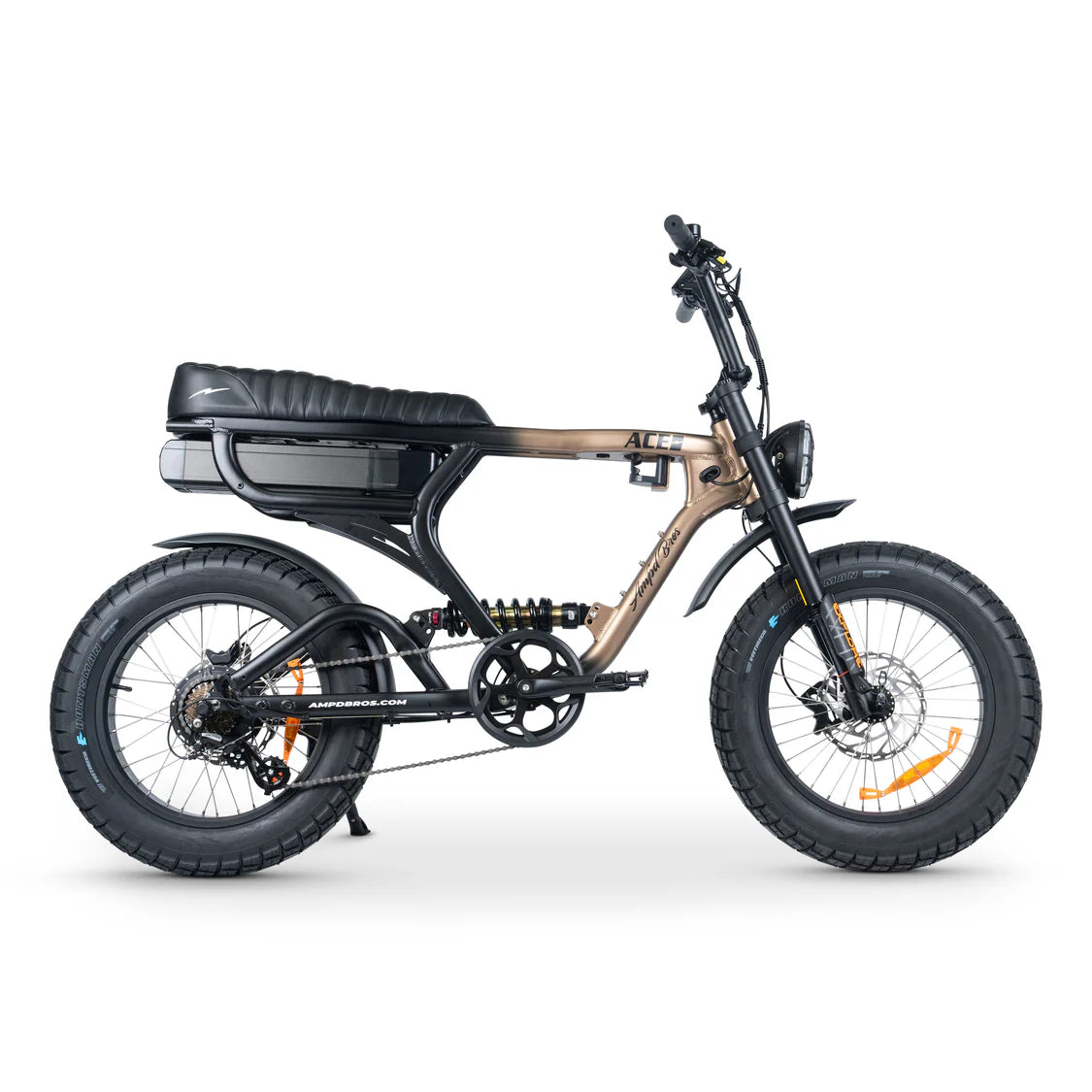

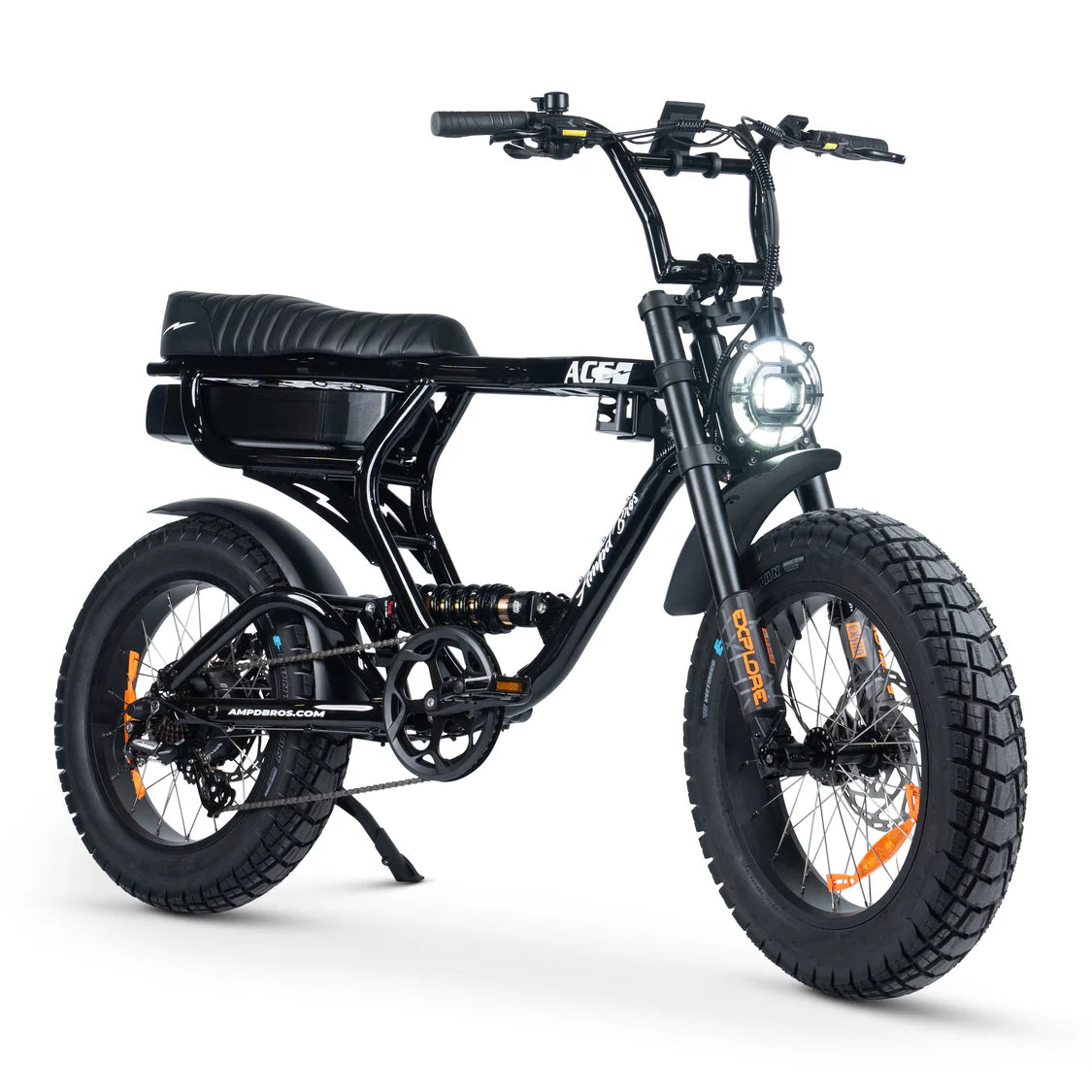

ACE-X PRO Dual Suspension Electric Bike

Ampd Bros Ace-X Pro Series 3 electric bike

Battery 30% larger than competitors!

Ampd Bros S3 ACE-X PRO dual suspension electric bike key features:

• New GEN3 battery with tail and brake lights
• Increased battery capacity to 25AH
• Upgraded battery cells to premium Samsung 21700 cells
• Software enhancements to display controls and design
• Revised suspension design to enable 115mm of seat height adjustment
• Integration of Bafang's latest hub motors
• Enhancements to frame design in order to allow installation of our new rear cargo rack and internal frame basket system
• 25AH Samsung 21700 Battery
• Up to 100km Range
• Step Over Design Frame
• 1,000W High Torque 95.Nm Bafang Rear Hub Motor
• 25km/h (or Unlock up to 50km/h for Private Property Use)
• Tektro Hydraulic Disc Brakes

Speed and Range

•  Range 100km* (Single Motor Only)
•  Top Speed 25km/h (or Unlock up to 50km/h for Private Property Use)

Battery

•  Standard 48V / 1,200Wh, 25AH
•  Samsung Premium 21700 Lithium cells
•  Battery is removable and can be charged in bike or separately.

Ride Modes

•  Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9

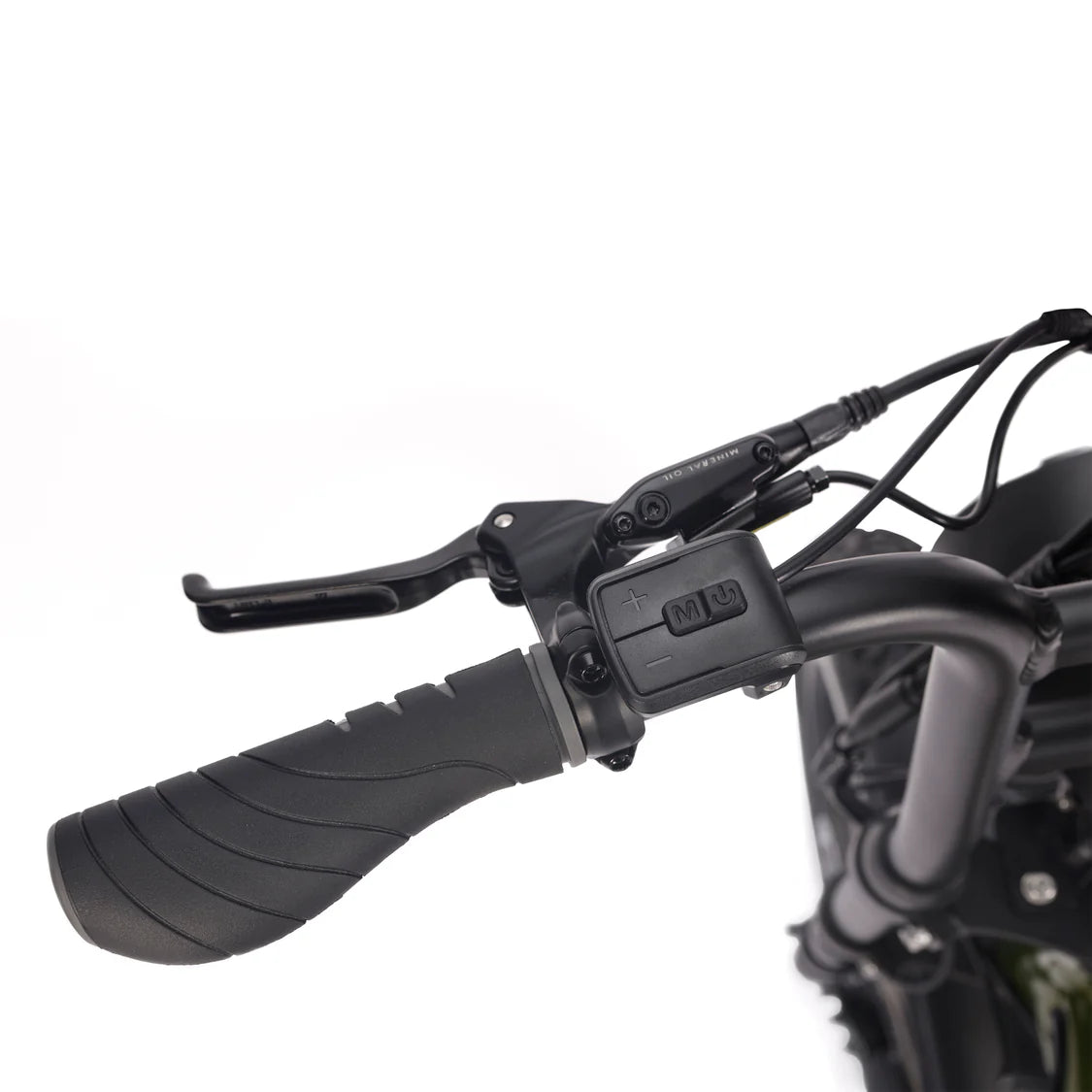

•  Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
•  Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit

Features

•  Hill Ability Up to 30º Degree / 60% Incline PAS

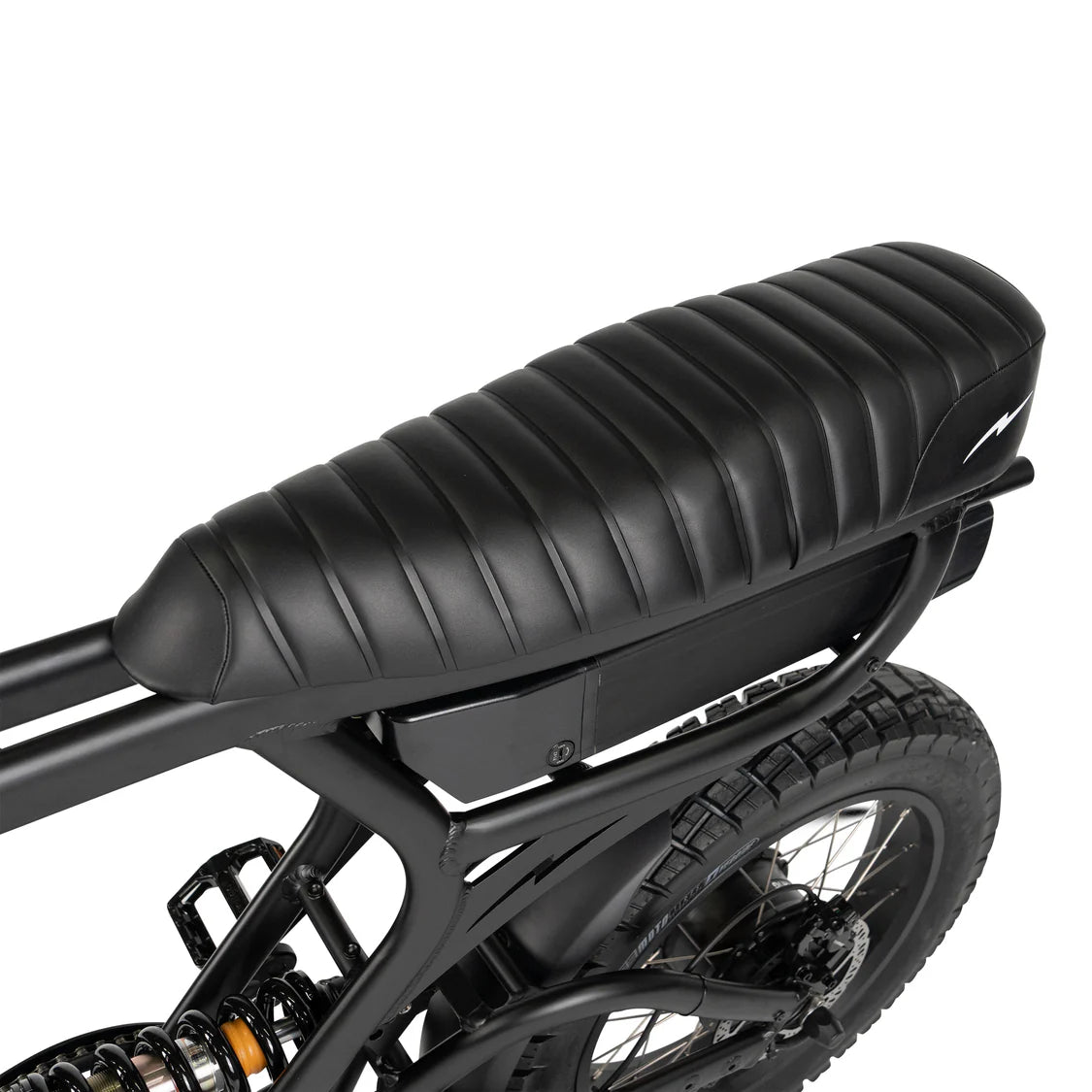

•  Seat Custom Large Quilted Plush Dual Seat for 2 Riders
•  Warranty 2 Years (1 Year on Batteries)

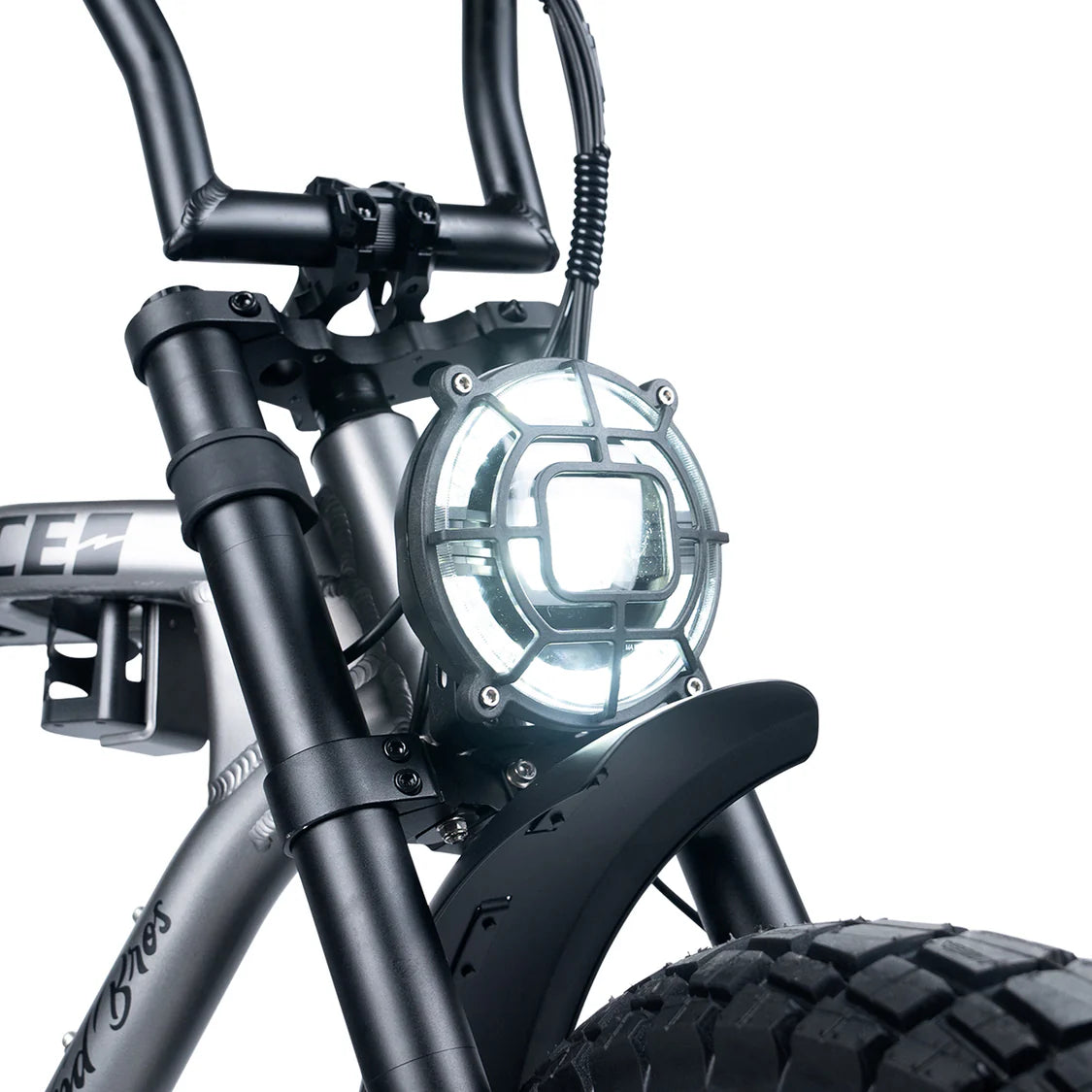

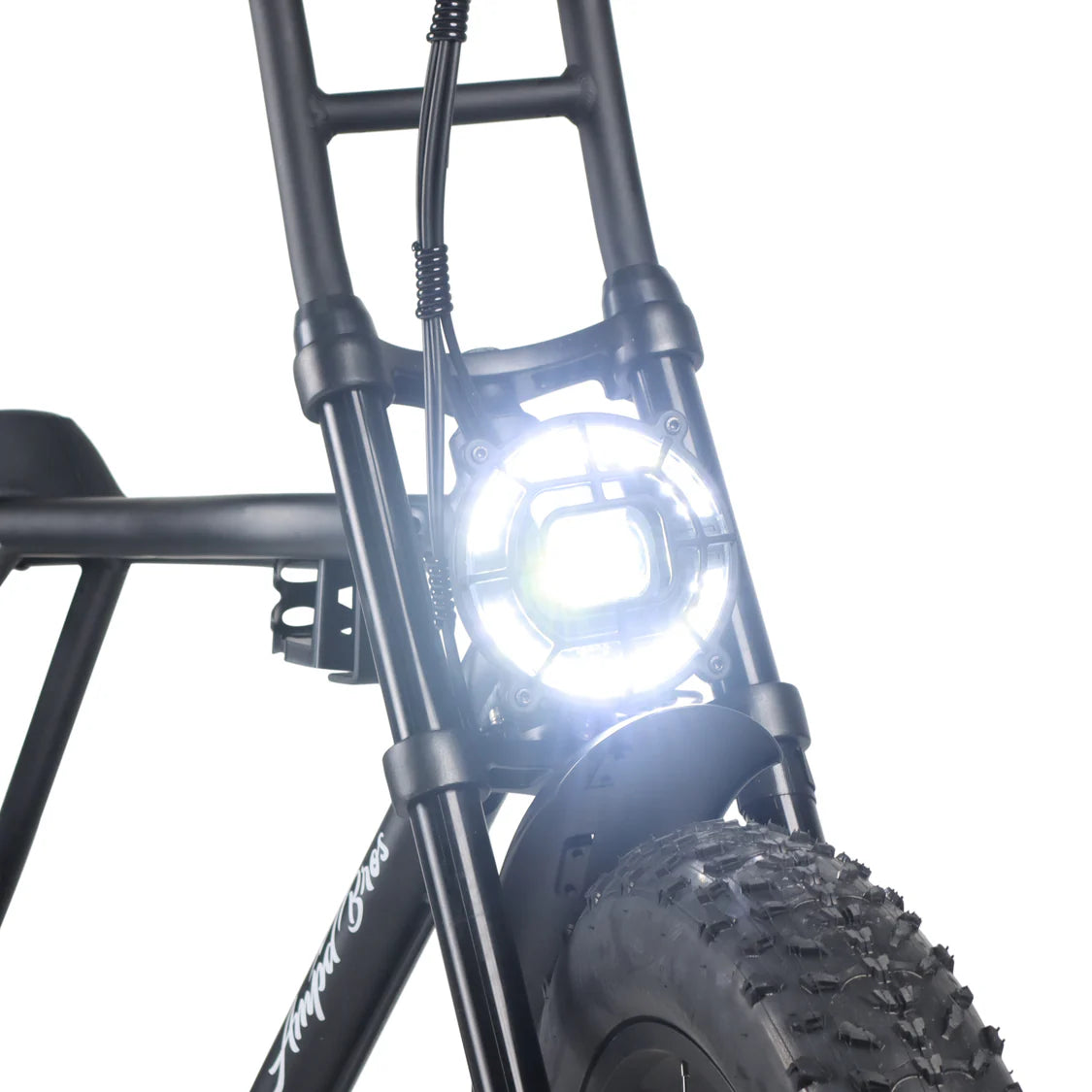

•  Ace Pro Headlight Ampd Bros Signature 800lm LED Light with DRL
•  Demon Headlight Upgraded PRO Front LED 1,700lm Headlight with DRL

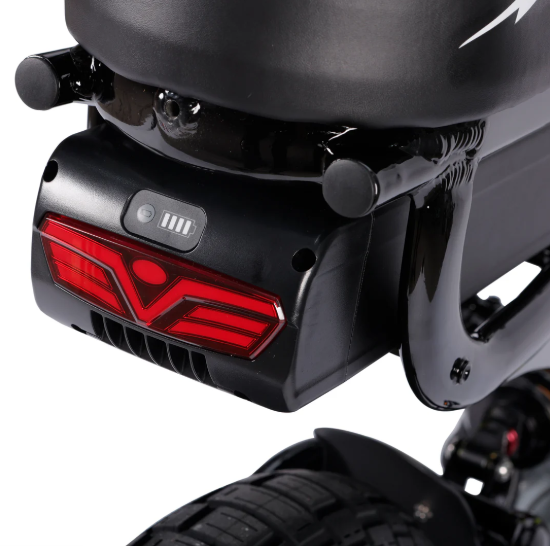

•  Lights Rear LED Brake Light inbuilt to battery pack

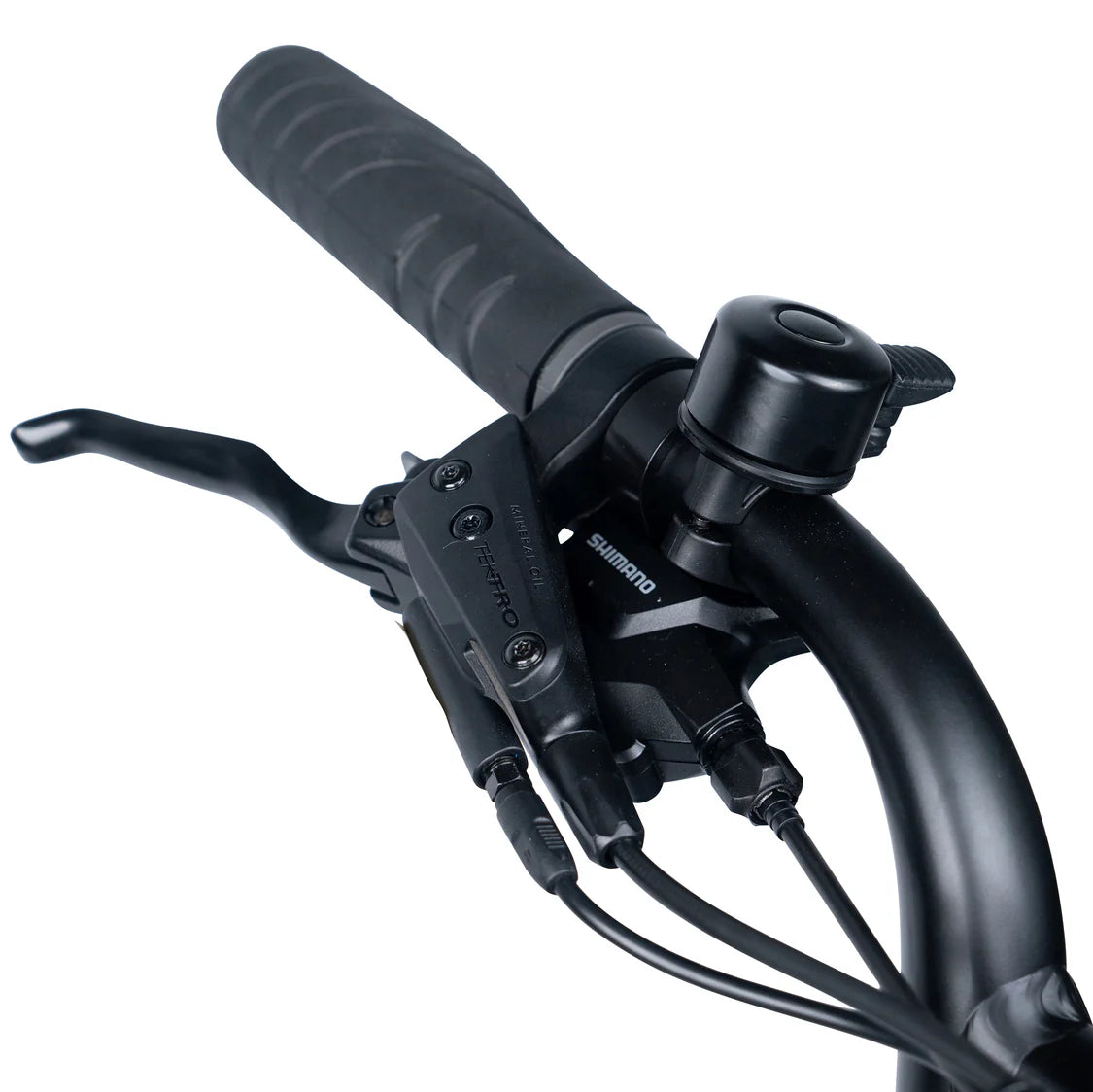

•  Grips Velo Wide Comfort
•  Bell Yes

Brakes

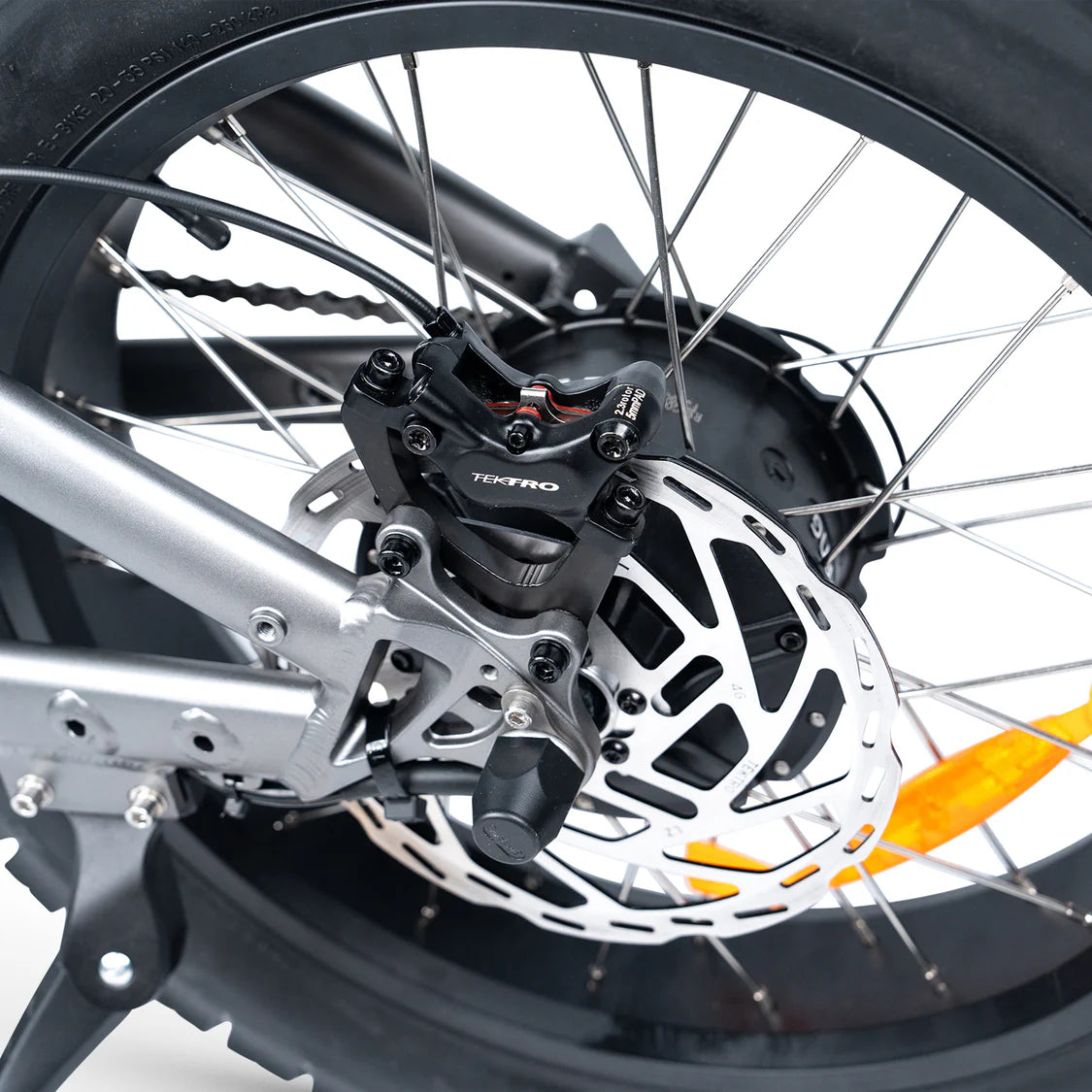

•  Standard Tektro Hydraulic Disc
•  Discs 180mm
•  E-Brakes Yes Motor Safety Cut Off

Display

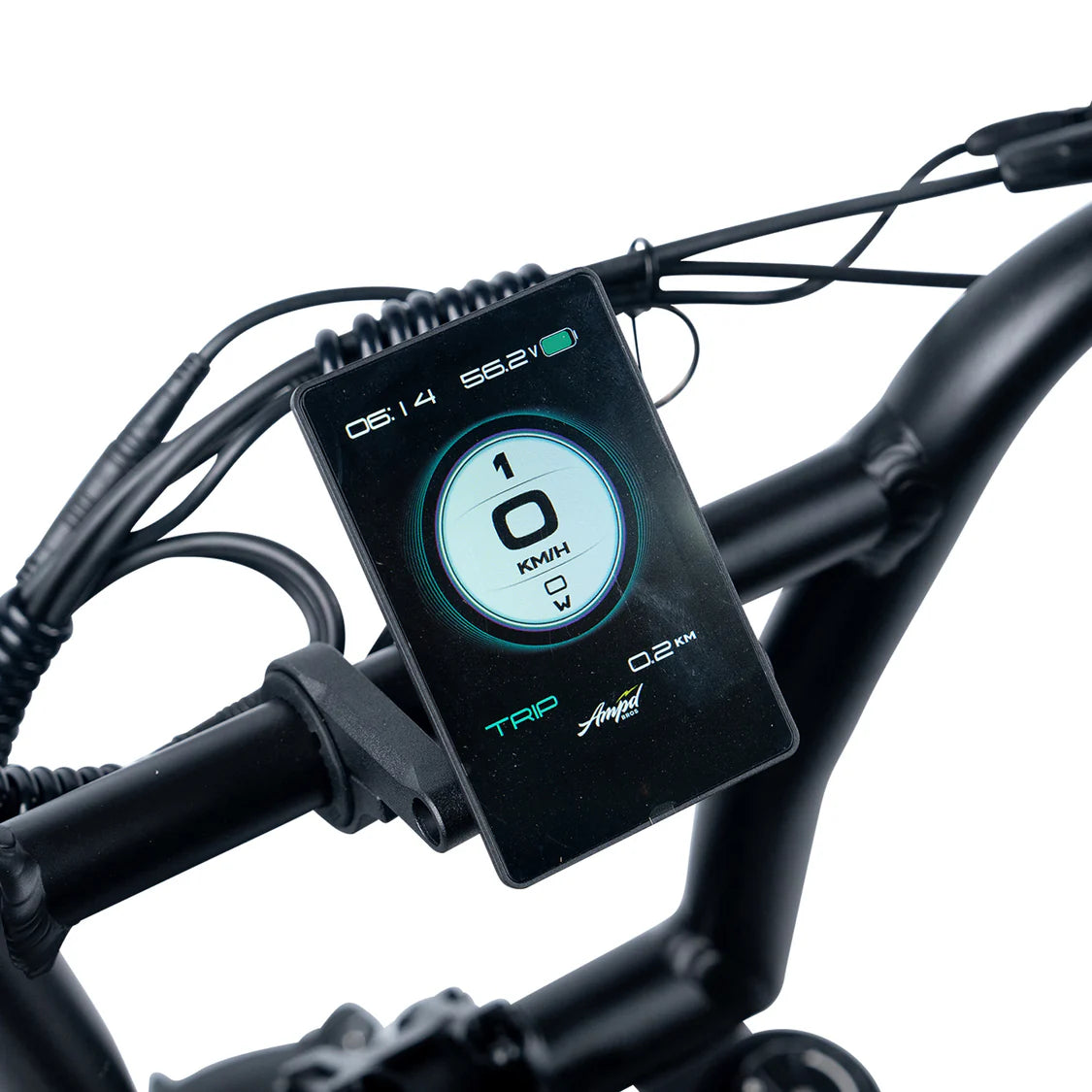

• Colour LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc

Controller

• Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.

Drivetrain

•  Motor Type Bafang RMG 062D & 063D Latest Gen Hub Drive
•  Ace Pro Motor Single Rear Limited to 250W (Unlocked 1,000W)
•  Ace Demon Motors AWD Dual Drive Limited to 250W (Unlock to 1,000W Front & Rear - 2,000W Total)
•  Ace Pro Torque High Torque 95n.m
•  Ace Demon Torque High Torque 190n.m (Combined)

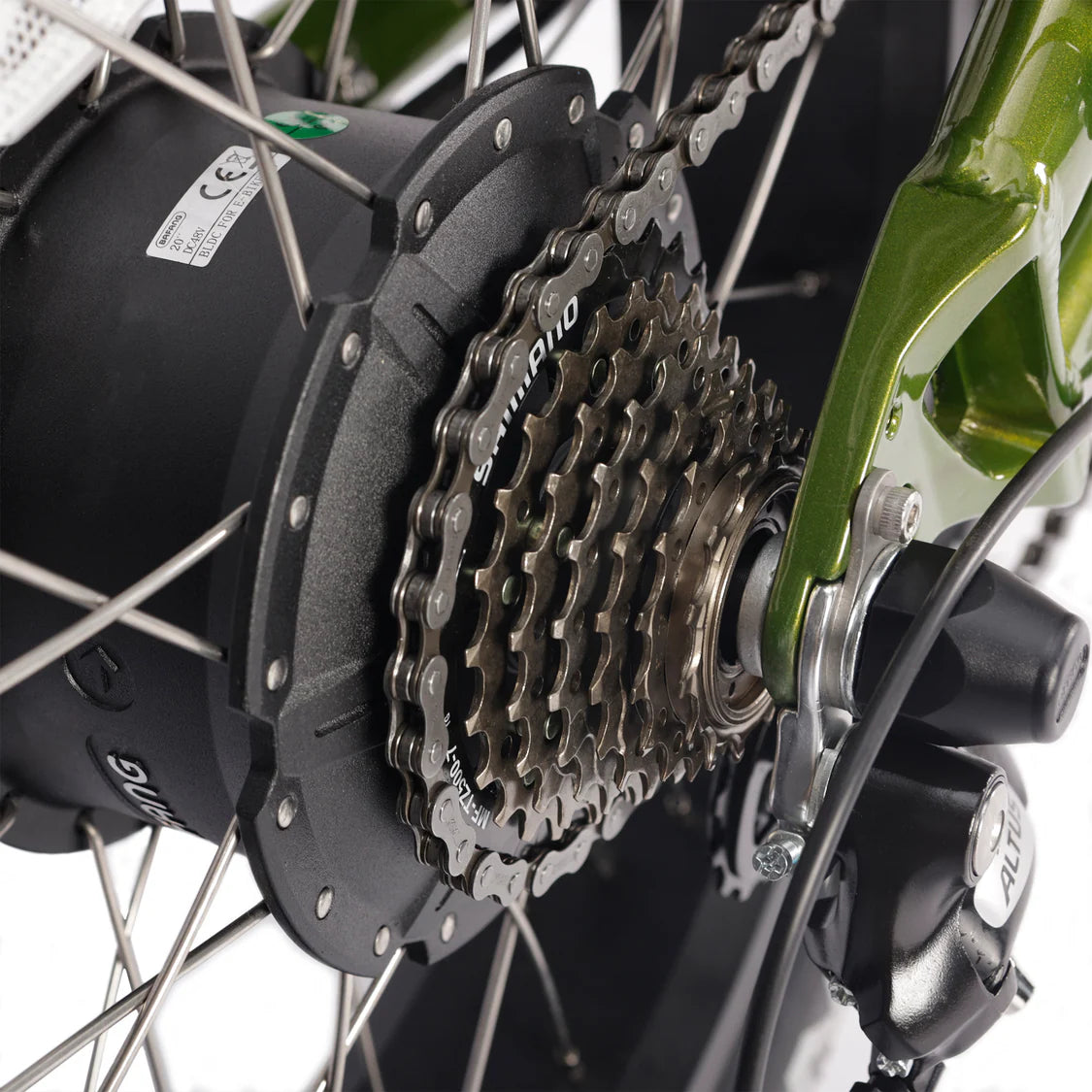

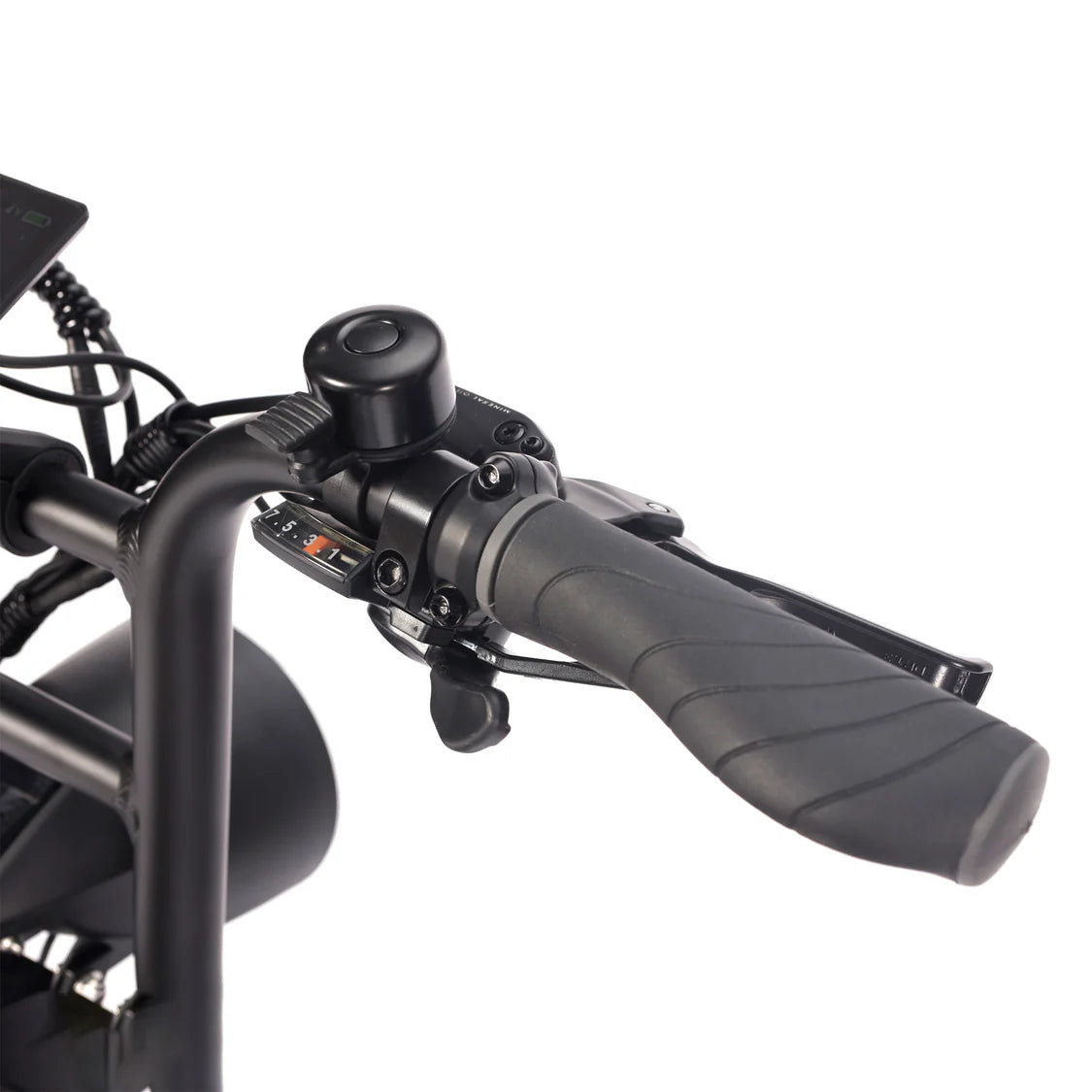

•  Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
•  Derailleur Shimano Altus
•  Pedals Wellgo Alloy - Black
•  Chain KMC Z Series High Performance

Construction

•  Frame Aluminium - "X" Step Over Bar Design
•  Handlebars Aluminium Motorcycle Inspired with Adjustable Height
•  Fenders Matte Black Aluminium

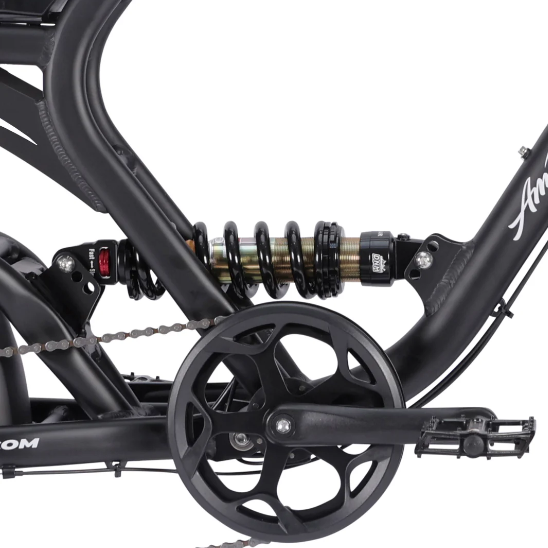

Suspension

•  Standard Front Independent & Rear Adjustable DNM

Wheels & Tyres

•  20x4.0" Vee Tire Huntsman Puncture Resistant All Terrain Tyres

Charging

• 8.5hrs for 25Ah Batteries with Standard 3A Included Charger
• Optional 5A Fast Charger Available

Dimensions

•  Overall Length 1,800 mm
•  Handlebar Height 1,140 - 1,190 mm
•  Handlebar Width 660 mm
•  Seat Height 880mm (Adjustable between 850-950mm)
•  Seat Length 600 mm
•  Ground Clearance 270 mm
•  Wheel Base 1,160 mm
•  Rider Height Ideal for Riders up to 200cm Tall

Weights

•  N.W of 25Ah Battery 6.25 kg
• N.W of ACE Pro + Battery 44.4 kg
• N.W of ACE Demon + Battery 49 kg
• Max Loading 180 kg

Inclusions

•  In Box Bike, 48V Battery, 3A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.

*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
